Ed25519 Keypair Generation Guide

For External Integration with Arkipel Communities

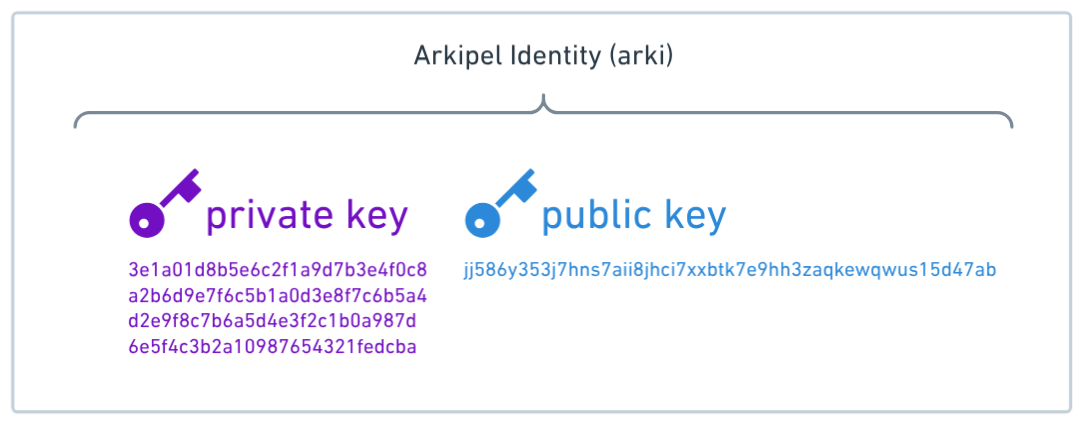

arki-identifier

Overview

This document specifies how to generate Ed25519 keypairs compatible with an arkipel system, including:

  • 32-byte seeds (64-character hex strings)
  • ZBase32-encoded public keys
  • 12-word BIP-39 mnemonics (from first 16 bytes of seed)
  • Hex-encoded private keys

Key Requirements

Parameter Format Notes
Seed 64-character hex string First 32 chars (16 bytes) used for mnemonic
Public Key ZBase32-encoded string Derived from full 32-byte seed
Private Key 64-character hex string Full 32-byte seed
Mnemonic Phrase 12-word BIP-39 phrase From first 16 bytes of seed

Implementation Specifications

1. Seed Handling

  • Input: Optional 32-character hex string (16 bytes)
  • Processing:
    1. If no seed provided, generate random 16-byte seed (32 hex chars)
    2. Pad to 32 bytes (64 hex chars) with zeros for Ed25519
    3. Use first 16 bytes (32 hex chars) for mnemonic generation

2. Keypair Generation

Generate Ed25519 keypairs compatible with our system.

2.1. Key Concepts

  • Uses 32-byte seeds (64-character hex strings)
  • Produces ZBase32-encoded public keys
  • Generates 12-word BIP-39 mnemonics from first 16 bytes of seed
  • Hex-encoded private keys

2.2. Arkipel Reference Implementation Test Vectors for keypair generation

Seed (hex)

a1b2c3d4e5f678901234567890abcdef

Public Key

yy5g76ch3mm7f4qcw3w3ag8h1x7k53631hjhn8ugic1buunid331

Private Key

a1b2c3d4e5f678901234567890abcdef00000000000000000000000000000000

Mnemonic Phrase

payment noodle vivid slogan guide elite emotion member joy luxury vibrant tattoo

2.3. Implementations Examples

3. Message Signing

Sign messages using the private key generated by your keypair.

3.1. Key Concepts

  • Uses Ed25519’s sign function
  • Produces a 64-byte signature (128 hex characters)
  • Requires the private key in binary format

3.2. Arkipel Reference Implementation Test Vectors for signing

3.2.1 Test 1

Private Key (hex)

a1b2c3d4e5f678901234567890abcdef00000000000000000000000000000000

Message

"Hello, world!"

Signature (hex)

0c52f48fecf760bd13ce590ca413a7d178a743331fb42ef7661d52b7232479250959839ae1ac75075cf77fb55cce742ac7666cf25af0c044b6e9fb674211eb05
3.2.2 Test 2

Private Key (hex)

a1b2c3d4e5f678901234567890abcdef00000000000000000000000000000000

Message

"Test"

Signature (hex)

84bc691a6de351d018ae2a0a25c6007c2a0c07237503710457734159647a6c12628a13e5090af9a89c92ce9aca4badc60b581c07fa1345a9c7d558f0d336bd07

3.3. Implementations Examples

4. Signature Verification

Verify signatures using the public key.

4.1 Key Concepts

  • Uses Ed25519’s verify function
  • Requires public key in binary format (decoded from ZBase32)
  • Returns boolean (true/false) indicating validity

4.2. Arkipel Reference Implementation Test Vectors for signature verification

4.2.1 Test 1

Public Key

yy5g76ch3mm7f4qcw3w3ag8h1x7k53631hjhn8ugic1buunid331

Message

"Hello, world!"

Signature (hex)

0c52f48fecf760bd13ce590ca413a7d178a743331fb42ef7661d52b7232479250959839ae1ac75075cf77fb55cce742ac7666cf25af0c044b6e9fb674211eb05

Expected Result

true
4.2.2 Test 2

Public Key

yy5g76ch3mm7f4qcw3w3ag8h1x7k53631hjhn8ugic1buunid331

Message

"Hello, world!"

Signature (hex)

1111111111111111111111111111111111111111111111111111111111111111

Expected Result

false
4.2.3 Test 3

Public Key

yy5g76ch3mm7f4qcw3w3ag8h1x7k53631hjhn8ugic1buunid331

Message

"Wrong message"

Signature (hex)

0c52f48fecf760bd13ce590ca413a7d178a743331fb42ef7661d52b7232479250959839ae1ac75075cf77fb55cce742ac7666cf25af0c044b6e9fb674211eb05

Expected Result

false

4.3. Implementations Examples

5. Complete Workflow Example and Validation

5.1. Generate Keypair

TODO

5.2. Sign a Message

TODO

5.3 Verify the Signature

TODO

###

Appendix

Why was ZBase32 chosen over other encoding schemes like Base64 or Base58 for the public keys

ZBase32 was likely chosen over Base64 or Base58 for public keys in your system for several important reasons. Here’s a detailed comparison that explains why ZBase32 is often preferred for certain use cases, particularly for public keys in distributed systems:

1. Character Set Comparison

Encoding Character Set Case-Sensitive Human-Friendly URL-Safe Padding Length Efficiency
Base64 A-Z, a-z, 0-9, +, /, = Yes No No* Yes High
Base58 A-Z, a-z, 0-9 (excluding 0, O, I, l) Yes No Yes No Medium
ZBase32 y, b, n, d, r, f, g, 8, e, j, k, m, c, p, q, x, o, t, 1, u, w, i, s, z, a, 3, 4, 5, h, 7, 6, 9 No Yes Yes No Medium

*Base64 requires URL-safe variants that replace + and / with - and _

2. Key Advantages of ZBase32

2.1. Case Insensitivity
  • ZBase32: All characters are lowercase (no case sensitivity issues)
  • Base64/Base58: Case-sensitive, which can cause problems in:
    • User input (typos, case mismatches)
    • Database lookups
    • URL parameters
    • Visual display (hard to distinguish 0 vs O, 1 vs l)
2.2. Human-Friendly Design
  • ZBase32:
    • Excludes visually similar characters (0/O, 1/l/I)
    • Uses only lowercase letters and a few digits
    • Easier to read aloud and transcribe
  • Base64:
    • Includes +, /, and = which are problematic in URLs
    • Includes both uppercase and lowercase letters
  • Base58:
    • Better than Base64 but still case-sensitive
    • Excludes more confusing characters than ZBase32
2.3. URL and Filename Safety
  • ZBase32: No special characters that need encoding in URLs
  • Base64: Requires URL-safe variant or encoding
  • Base58: URL-safe but includes both cases
2.4. Sorting and Comparison
  • ZBase32: Case-insensitive sorting works naturally
  • Base64/Base58: Requires case-sensitive comparison
2.5. Implementation Consistency
  • ZBase32:
    • No padding characters (unlike Base64’s =)
    • Consistent length for given binary input
    • Less prone to implementation errors
2.6. Error Detection
  • ZBase32: Some implementations include checksums
  • Base64: No built-in error detection
  • Base58: Often used with checksums (like in Bitcoin)
2.7. Length Efficiency

For encoding 32-byte Ed25519 public keys:

  • Base64: 44 characters (with padding)
  • Base58: ~44 characters
  • ZBase32: 52 characters, While ZBase32 is slightly longer, the tradeoff is worth it for the other benefits

3. Specific Use Case Benefits for Public Keys

3.1. Database and Indexing:
  • Case-insensitive comparison is faster and simpler
  • No need for case-sensitive indexes
  • Example SQL query:
-- Works naturally with ZBase32

SELECT * FROM accounts WHERE public_key = 'xn...';

-- Requires exact case matching with Base64/Base58

SELECT * FROM accounts WHERE LOWER(public_key) = LOWER('Ab...');
3.2. User Experience:
  • Easier to read and manually enter
  • Less prone to transcription errors
  • Example public key display:
ZBase32: yy5g76ch3mm7f4qcw3w3ag8h1x7k53631hjhn8ugic1buunid331
Base64: 3x6X7J4Q5nK7mZ9pL2vW8yT4uV6sR0qP1oN/+== (with = padding)
3.3. API and URL Usage:

  • Can be safely used in URLs without encoding:

     https://api.example.com/accounts/yy5g76ch3mm7f4qcw3w3ag8h1x7k53631hjhn8ugic1buunid331

  • No need for URL encoding/decoding

3.4. Visual Display:
  • No confusing characters (0 vs O, 1 vs l)
  • Consistent appearance across fonts
3.5. Security:
  • Reduces risk of phishing attacks using similar-looking characters
  • Harder to create visually similar but different keys

4. When to Choose Each Encoding

Use Case Recommended Encoding Reason
URL-safe tokens ZBase32 or Base58 No special characters
Public keys ZBase32 Human-friendly, case-insensitive
Cryptocurrency addresses Base58 Tradition, checksum support
Configuration files Base64 Space efficiency
Binary data storage Base64 Most space-efficient

5. Real-World Examples

5.1. Systems using ZBase32:
  • Signal Protocol (for key fingerprints)
  • DNSSEC (for key fingerprints)
  • Some blockchain systems
5.2. Systems using Base58:
  • Bitcoin addresses
  • IPFS CIDs
5.3. Systems using Base64:
  • JSON Web Tokens (JWT)
  • Data URLs
  • Email attachments

6. Tradeoffs

Factor ZBase32 Base64 Base58
Implementation complexity Medium Low Medium
Storage efficiency Medium High Medium
Human readability High Low High
URL safety High Low* High
Case sensitivity None Yes Yes
Character confusion Low High Medium
Padding requirements None Yes None

*Base64 requires URL-safe variant

7. Recommendation

For arkipel’s use case of public keys that need to be:

  • Displayed to users
  • Used in URLs
  • Stored in databases with case-insensitive comparison
  • Manually entered in some cases

ZBase32 is the optimal choice despite its slightly longer length. The benefits in usability, safety, and implementation simplicity outweigh the minor storage efficiency disadvantage.
